Mini Rail Metal Roof Solar Mounting
Mini Rail Metal Roof Solar Mounting
Mini Rail Metal Roof Solar Mounting
Mini Rail Metal Roof Solar Mounting
Mini Rail Metal Roof Solar Mounting

Mini Rail Metal Roof Solar Mounting

Mini Rail is simple solar mounting solution for metal roof,less components,just only come with mid clamp,end clamp and earthing accessories.It is economical and fast mounting structure for metal roof.

  • Item No :

    LP-MR01-400
  • Order(MOQ) :

    70PC
  • Payment :

    TT,LC
  • Product Origin :

    China
  • Color :

    Silver,Black
  • Shipping Port :

    Xiamen China
  • Lead Time :

    7-15days
  • Share to :
  • youtube
  • Facebook
  • twitter

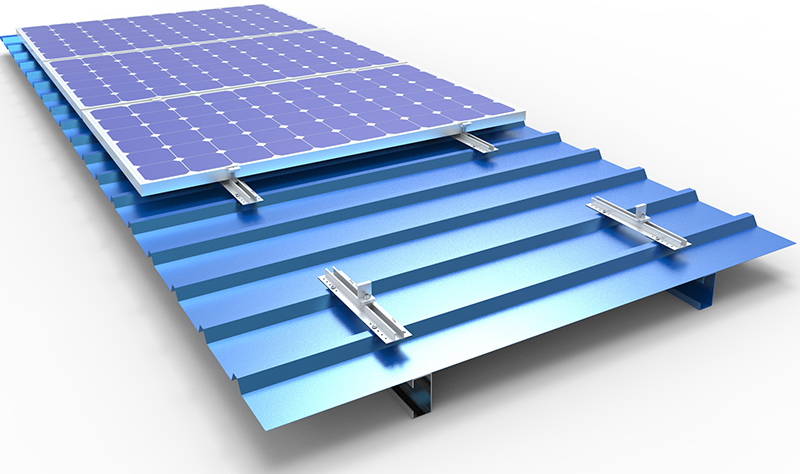

The Mini Rail Set is coming with short rail,4 thread tapping screw with sealing washer. The aluminum Mini rail are with adhesive rubber pad,specially designed for installing solar panel on trapezoidal sheet metal roofs,simple structure for fast installation.

Mini Rail Trapezoidal Roof Mounting

Main Mini Rail Set Components:

MiniRail System

TECHNICAL INFORMATION
Install site :Trapezoidal Sheet Metal
Tilt Angle :Flushed with the roof (10~60 deg)
Building Height:20 m
Max Wind Speed:<60m/s
Snow Load:<1.4KN/m2
Standard :En 1090, AS/NZS 1170 and other international Standard
Material :Aluminum 6005-T5& Stainless steel A2(304) EPDM
Color: Silver,Black or Customized
Anti-corrosive: anodized aluminum & stainless steel

Warranty:Ten years warranty and twenty- year service life

Mini Details for Trapezoidal Roof:

mini rail for trapezodal roof

Mini Rail Dimension:

Mini Rail Mid Section

mini rail solar mount



Higher Mini Rail Option

mini rail china



mini rail for solar panels

Other Metal Roof Attachment

corrugated roof clamp

We engineer and design Solar Racking/Mounting Hardware for specific solar projects, there may not list all thedetails of racking in the web,therefore,please don't hesitate to contact us for more details for your specific projects.
