Aluminium Ground Mounting Portrait

The Portrait Aluminium Ground Mounting is designed for large scale solar plant installation. There are less components,and components is pre-assembled to make the mounting structure easy and reduce installation time,which actually make the cost low.The material of system are aluminium and with anodized film,the accessories are assembled with stainless steel fasteners,the ground mount are at high quality with super aesthetic.

TECHNICAL INFORMATION

Install site ：Open Field

Module Type: Framed or Frame-less

Module Arrangement:Portrait

Tilt Angle:0-65 deg. Design on request

Foundation:Ground Screw or Concrete

Main Material ：Aluminum 6005-T5& Stainless steel A2(304)

Color: Silver,Black or Customized

Anti-corrosive: Anodized aluminum & stainless steel,EPDM

Standard ：En 1090, AS/NZS 1170,DIN 1055, IBC 2006 and other international Standard

Warranty：12 years warranty and twenty- year service life

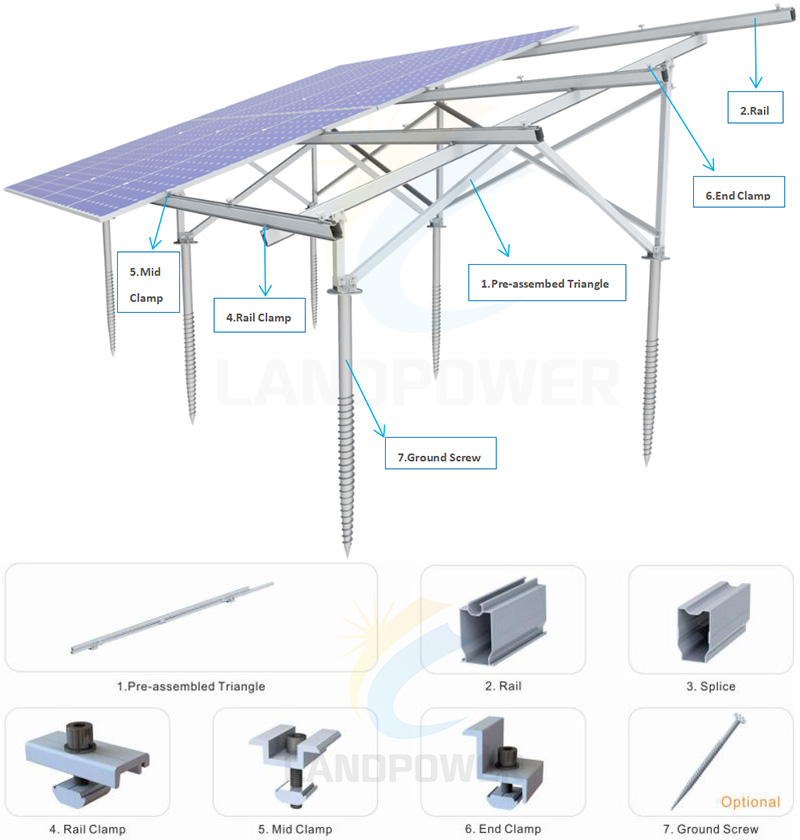

Main Components of The Ground  Structure

Details of the Ground Mounting Rack

There are few components like mid clamp,end clamp, and pre-assembed triangle supports,the mounting system is quick and simple.

Two Foundation Options

There are two foundations for the aluminium ground mounting,concrete black foundation or ground screw.

Installation Vedio:

MW project Reference:

We also carry solar ground structure solutions like galvanized steel, and Zn-Al-Mg coated steel(like similar material magnelis ZAM etc), and pile driven ground mounting etc.,therefore,please don’t hesitate to contact us for more details for your specific projects.
